Optics
For AI Scale

Purpose-built connectivity for AI fabrics, from in-rack copper to cross-hall fiber. Every transceiver and cable is qualified end-to-end on Aria switches before it ships.

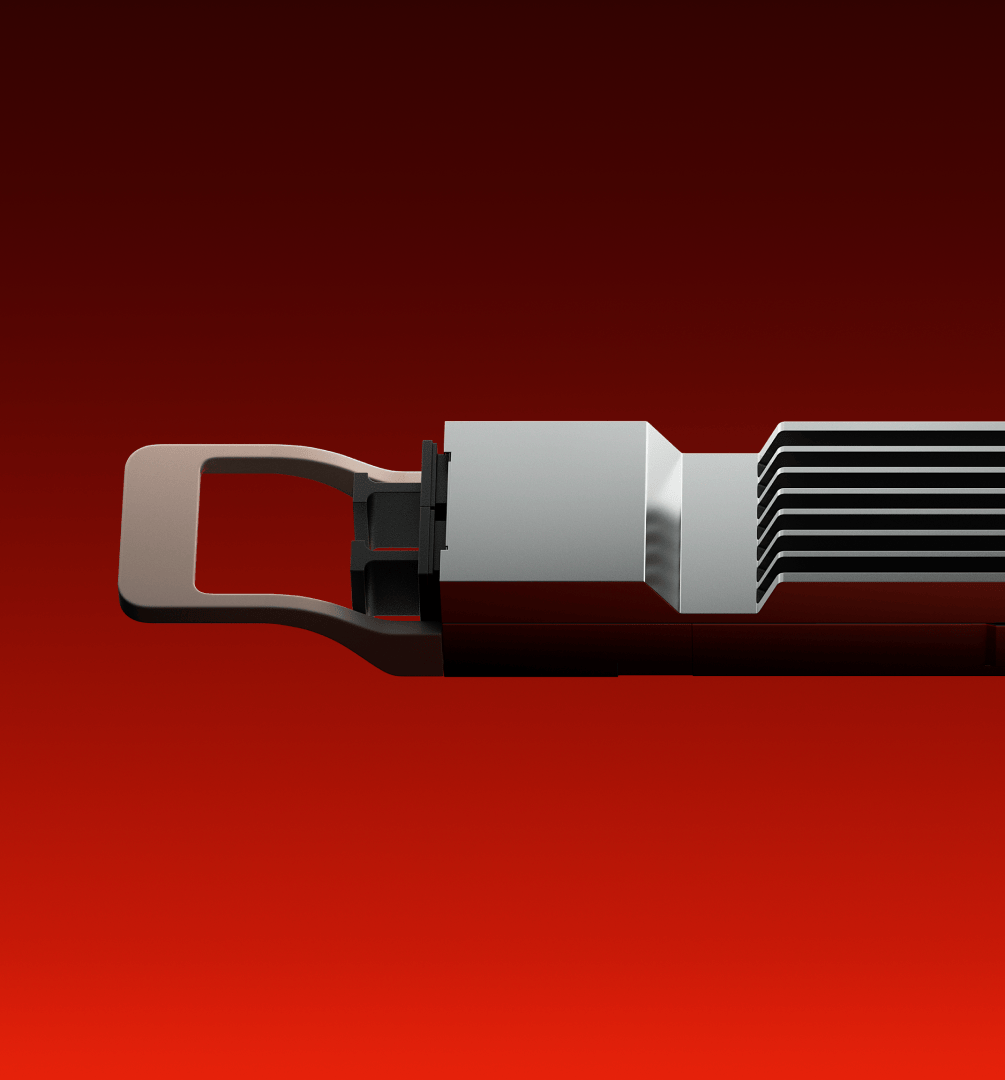

Aria transceiver detail 1

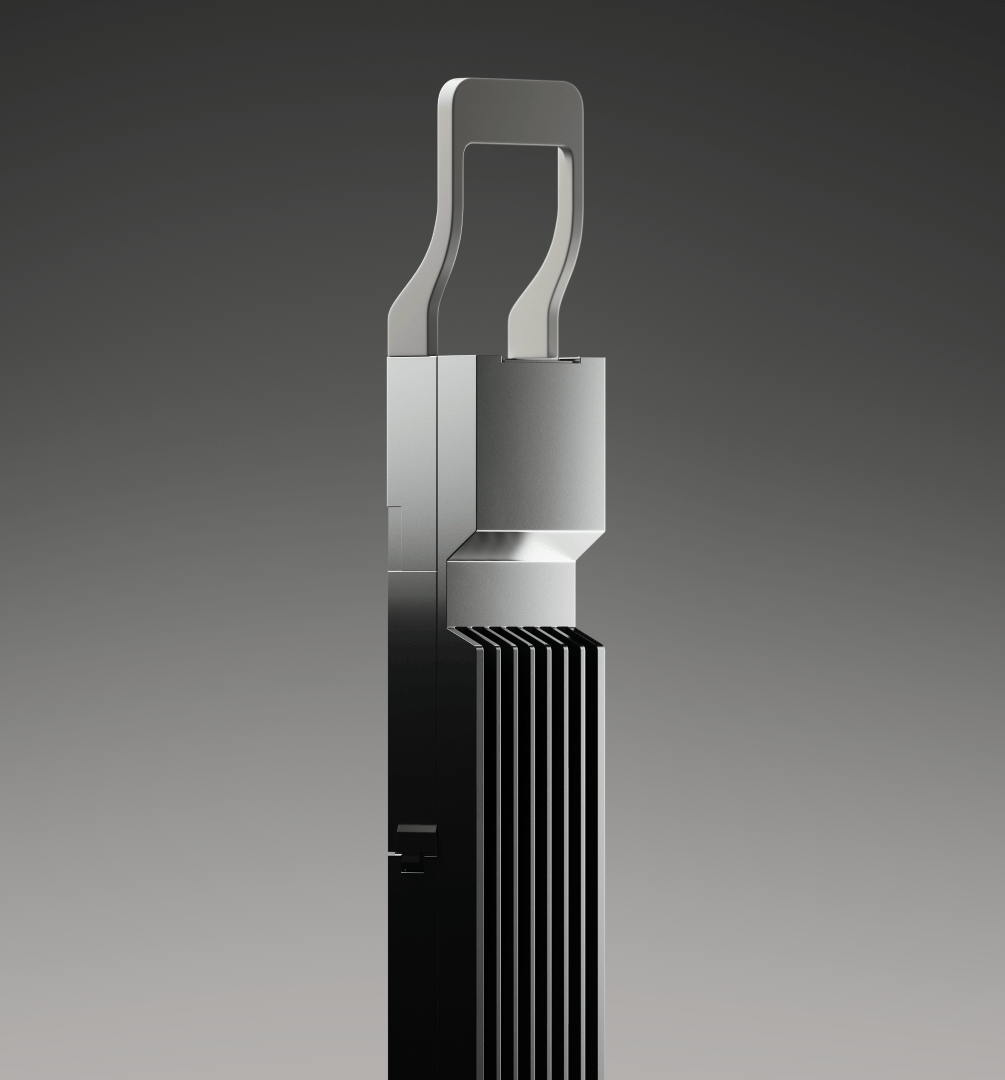

Aria transceiver detail 2

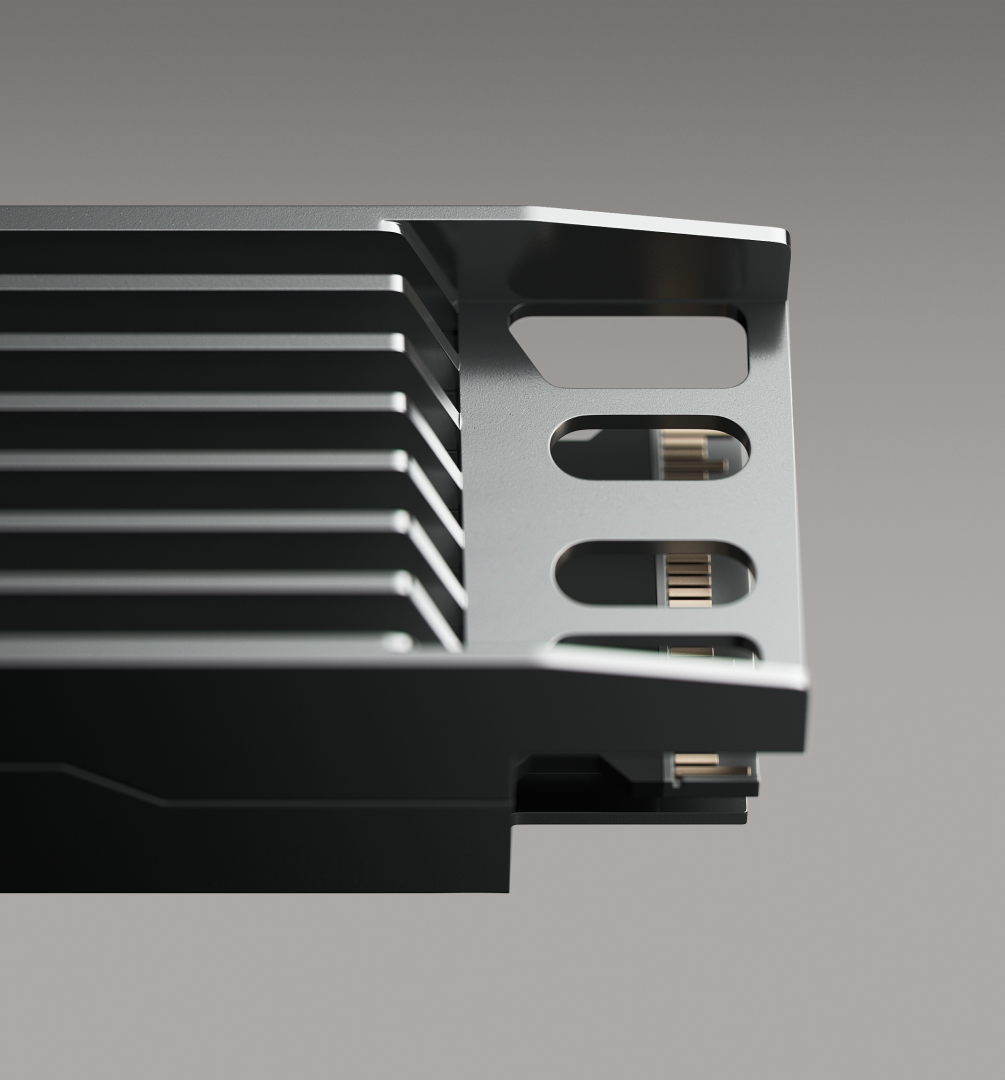

Aria transceiver detail 3

DSP Optical

Re-timed, DSP-based transceivers for scale-out fabrics. VR, DR, and DR+ reaches from multimode to long single-mode runs, with PRBS diagnostics built in.

LPO / LRO Linear

Linear-drive optics that remove the DSP from the data path, cutting power draw and latency on short links.

Active Electrical

Active electrical cables that extend copper past passive DAC limits, with re-timed signaling and in-system PRBS test support.

Passive DAC

Passive direct-attach copper for the lowest-power, lowest-cost links inside the rack, including 800G to 2x400G breakouts.

Catalog

Part number Description
Speed Reach
800G-O1O-LPO2X 20m SMF 800G LPO
800G 20m
800G-O1O-AEC3M 3m 800G AEC
800G 3m
800G-O1O-AEC2M 2m 800G AEC
800G 2m
800G-O2R-DAC2M 2m 2x400G 2xOSFP-OSFP DAC
800G 2m
800G-O2Q-DAC2M 2m 2x400G 2xQSFP-OSFP DAC
800G 2m
800G-O1O-DAC3M 3m 800G DAC
800G 3m
800G-O1O-DAC2M 2m 800G DAC
800G 2m
800G-O1O-DAC1M 1m 800G DAC
800G 1m
800G-O1O-DACM5 0.5m 800G DAC
800G 0.5m
800G-O1O-LPO5M 5m SMF 800G LPO
800G 5m
800G-O1O-LPO3M 3m SMF 800G LPO
800G 3m
800G-O112-2VR4 50m (OM4) MMF 2x400G VR4 DSP
800G 50m (OM4)
800G-O112-VR8 50m (OM4) MMF 800G VR8 DSP
800G 50m (OM4)
800G-O112-2DR4 500m SMF 2x400G DR4 DSP
800G 500m
800G-O112-DR8 500m SMF 800G DR8 DSP
800G 500m
800G-O112-2EDR4 2km SMF 2x400G DR4+ DSP
800G 2km
800G-O112-EDR8 2km SMF 800G DR8+ DSP
800G 2km
400G-Q112-SR4 100m (OM4) MMF 400G SR4 DSP
400G 100m (OM4)
400G-Q112-DR4 500m SMF 400G DR4 DSP
400G 500m
25G-S28-LR 10km SMF 25G LR DSP
25G 10km
